SL200

Solar PV Kit

SL200 Solar PV Kit

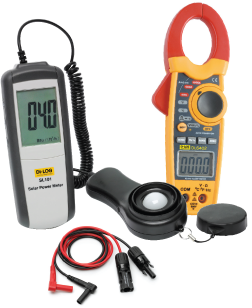

The SL200 is a low cost Solar PV test kit.  The kit includes the SL101 - Solar Irradiance Meter and the DL6402 - AC/DC current Clamp meter packaged in a soft compact carry case.

SL101 is a low cost professional Solar Irradiance Meter designed to assist in the installation of solar panel.  With its hand held design, the SL101 enables you to perform safe and accurate measurements, even when working at heights.  The SL101 also features a hold facility allows you to record the Irradiance level safely.

The Kit also includes an SLLSC4 – 4mm MC4 test lead set for Voltage (VOC) measurement on the DL6402.

SL101 - Features:

  • Solar Irradiance measurement to 1999 W/m² or 634BTU/ft²*h
  • Auto Hold
  • Carry Case

DL6402 - Features:

  • Audible Continuity
  • SLLSC4 – 4mm MC4 Red/Black lead set for VOC measurement
  • Temperature thermocouple and K-Type adaptor supplied
  • Frequency and capacitance
  • 30 mm jaw opening
  • 1000 AC/DC Current reading
  • Electronic overload protection
  • A large easy to see back lit display
  • AC/DC voltage up to 600V

Trade Price

£209.00

Calibration

£POA

SL200 Solar PV Kit

SL101 Solar Irradiance Meter



SL101 - Specification

Measurement Range Basic Accuracy
Irradiance 1999W/m² Typically within ± 5% of rdg or ± 10W/m²
634BTU/ft²*h) Typically within ± 5% of rdg or ± 3BTU/ft²*h
Power supply 1 x 9 V battery
Dimensions 142(H) x 54(W) x 34(D) mm
Weight About 308g

DL6402 - Specification

Measurement Range Basic Accuracy
AC Current 0.01mA - 1000A 3% ± 5 dgts
DC Current 0.01mA - 1000A 2.8% ± 5 dgts
AC Voltage 0.1mV - 600V 1.8% ± 3 dgts
DC Voltage 0.1mV - 600V 1.5% ± 3 dgts
Resistance 0.1Ω - 40MΩ 1.5% ± 2 dgts
Capacitance 40.00nF – 100.0uF 3% ± 5 dtgs
Frequency 0.001Hz – 100.0kHz 1.2% ± 2 dgts
Temperature -20°C - 1000°C
-4°F - 1832°F		 ±3.0 % of rdg ± 5 dgts
±3.0 % of rdg ± 7 dgts
Diode Test 1.5V DC Typical N/A
Power supply 1 x 9 V battery PP3
Dimensions 229 x 80 x 49 mm
Weight 303g
