DL6402

1000 Amp AC/DC Digital Clamp Meter

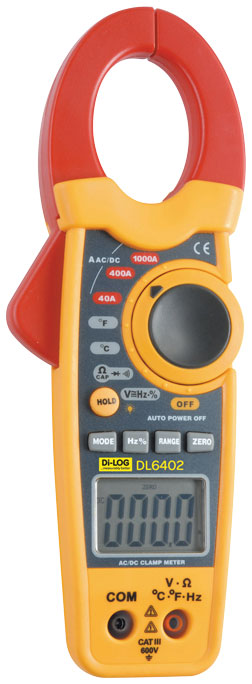

DL6402 - 1000 Amp AC/DC Digital Clamp Meter



With the inclusion of DC current temperature & capacitance readings, this clamp meter is the ideal all purpose instrument.

The slim design combined with the tear shaped jaw makes it an ideal unit for use in crowded panels and tight spaces.

The data hold and peak capture function makes this a versatile and cost effective clamp meter.

Features;

  • Audible Continuity
  • Temperature thermocouple supplied
  • Frequency and capacitance
  • 30 mm jaw opening
  • 1000 AC/DC Current reading
  • Electronic overload protection
  • A large easy to see back lit display
  • AC/DC voltage up to 600V.



Trade Price

£108.90

Calibration

£29.00









Measurement Range Basic Accuracy
AC Current 10mA - 1000A 3.0% ± 5 dgts
DC Current 10mA - 1000A 2.8% ± 5 dgts
AC Voltage 0.1mV - 600V 1.8% ± 3 dgts
DC Voltage 0.1mV - 600V 1.5% ± 3 dgts
Resistance 0.1Ω - 40MΩ 1.5% ± 2 dgts
Capacitance 40.00nF – 100.0uF 3.0% ± 5 dtgs
Frequency 0.001Hz – 100.0kHz 1.2% ± 2 dgts
Temperature -20°C - 1000°C ±3.0 % of rdg ± 5 dgts
-4°F - 1832°F ±3.0 % of rdg ± 7 dgts
Diode Test 1.5V DC Typical N/A
Power supply 1 x 9V battery PP3
Dimensions 229 x 80 x 49 mm
Weight 303g
